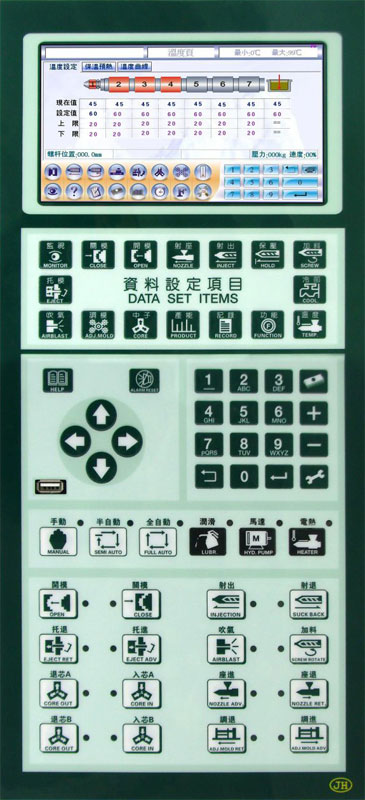

卧式注塑机系列 JHPA07

7寸TFT宽屏 800*480 LCD、高亮度LED背光

ARM处理器400MHZ WINCE操作系统

高分辨率电阻式触摸屏

USB方式资料上传和下载

Rj45以太网接口施行联网功能

光电隔离式25点输入、33点输出

2组模拟量输出同时支持电压和电流方式

4组模拟量输入

8组高精准温度控制

I/O板为JHP7I/O

7-inch widescreen TFT 800 * 480 LCD, high-brightness LED backlight;

ARM Processor 400MHZ WINCE operating system;

High-resolution resistive touch screen;

USB mode data upload and download;

Rj45 Ethernet networking purposes;

25 optical isolated inputs, 33 outputs

Group 2 also supports analog output voltage and current mode;

Group 4 analog inputs;

Eight high-precision temperature control;

I/O board for JHP7I/O;
