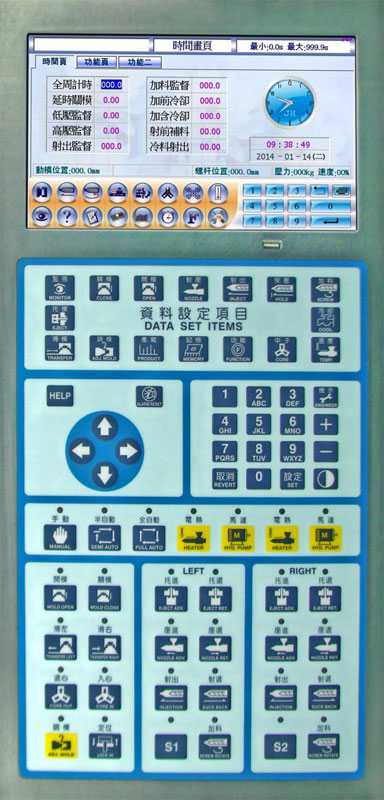

立式注塑机系列 JHPV10

10.2寸TFT宽屏 800*480 LCD、高光度LED背光

ARM处理器400MHZ WINCE6.0操作系统

高分辨率电阻式触摸屏

USB方式资料上传和下载

128M FLASH Rj45以太网接口施行联网功能

多CPU控制下位机提高控制精度

光电隔离式40点输入、48点输出

8组12bit模拟量输出同时支持电压和电流方式

8组16bit模拟量输入精度范围为0.01

8组高精准温度控制精度范围为0.1（最大可扩充128组）

I/O板为JHP7I/O,也可配JHP7XI/O

10.2-inch widescreen TFT 800 * 480 LCD, high-brightness LED backlight;

ARM Processor 400MHZ WINCE6.0 operating system;

High-resolution resistive touch screen;

USB mode data upload and download;

128M FLASH Rj45 Ethernet networking purposes;

Multi-CPU machines under the control bit to improve control accuracy;

40 optical isolated inputs, 48 outputs;

8 group supports both 12bit analog output voltage and current mode;

Eight 16bit analog input accuracy range of 0.01;

Eight high-precision temperature control accuracy in the range of 0.1(expandable up 128 groups);

I/O board for the JHP7I/O, can also be equipped with JHP7XI/O;
